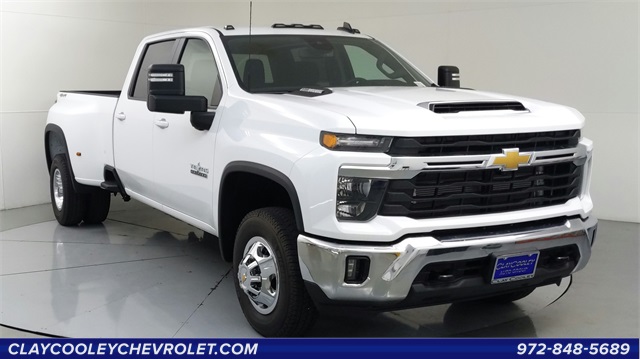

New 2026 Chevrolet Silverado 3500HD LT
Details
Estimate Monthly Payments
The total cost of the vehicle.
A down payment is an initial, upfront payment you make toward the total cost of the vehicle. Your down payment could be cash, the value of a trade-in, or both. The more you put down, the less you need to borrow. A larger down payment may also reduce your monthly payment and your total cost of financing.
The trade in value is the amount that a dealer is willing to offer you towards the purchase of a new vehicle in exchange for your current one. It’s typically based on the market value of your vehicle (the amount it would sell for on the open market).
Your payoff amount is how much you will actually have to pay to satisfy the terms of your mortgage loan and completely pay off your debt. Your payoff amount is different from your current balance.
Additional down payment in cash.
This is the length of your auto loan, generally expressed in months. A shorter loan term (in which you make monthly payments for fewer months) will reduce your total loan cost. A longer loan can reduce your monthly payment, but you pay more interest over the life of the loan. A longer loan also puts you at risk for negative equity, which is when you owe more on the vehicle than the vehicle is worth.
This is the annual percentage rate, and is not always the same as the interest rate. This represents the annual rate that is charged, and as such, is the actual annual cost to the consumer over the course of the auto loan. The APR will allow you to more easily shop and compare car loans, since it equates all loans to the same annual rate.
Description
Standard Features
- Air filter, heavy-duty
- Air filtration monitoring
- Alternator, 170 amps (Requires (L8T) 6.6L V8 Gas engine.)
- Auto-locking rear differential
- Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power (Included and only available with (L8T) 6.6L V8 Gas engine.)
- Brake lining wear indicator
- Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
- Capless Fuel Fill (Requires (L8T) 6.6L V8 Gas engine. Not available with (ZW9) pickup Bed delete.)
- Cooling, auxiliary external transmission oil cooler
- Cooling, external engine oil cooler
- Durabed, pickup Bed
- Exhaust, single, side
- Four wheel drive
- Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
- GVWR, 11,700 lbs. (5307 kg) with single rear wheels (Included and only available with CK30943 model and (L8T) 6.6L V8 Gas engine. Requires single rear wheels.)
- Rear axle, 3.73 ratio (Requires (L8T) 6.6L V8 Gas engine. Not available with (L5P) Duramax 6.6L Turbo-Diesel V8 engine.)
- Steering, Recirculating ball with smart flow power steering system
- Suspension Package
- Trailer brake controller, integrated
- Transfer case, Two-speed electronic shift with push button controls
- Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
- Air vents, rear, heating/cooling (Not available on Regular Cab models.)
- Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
- Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
- Compass, located in instrument cluster
- Driver Information Center, enhanced 12.3″ diagonal reconfigurable multicolor digital display
- Exterior Temperature Display located in radio display
- Floor covering, color-keyed carpeting
- Mirror, inside rearview, manual tilt
- Power outlet, Bed mounted, 120-volt (400 watts shared with (KI4) interior power outlet)
- Power outlet, interior, 120-volt (400 watts shared with (KC9) Bed mounted power outlet)
- Seat adjuster, driver 4-way manual
- Seat adjuster, passenger 4-way manual
- Steering wheel audio controls
- Steering wheel, wrapped
- USB Ports, rear, dual, charge-only
- Window, power front, drivers express up/down
- Window, power front, passenger express down
- Windows, power rear, express down (Not available with Regular Cab models.)
- BedStep, Black integrated on forward portion of Bed on driver and passenger side (Deleted when (ZW9) pickup Bed delete is ordered.)
- Bumper, front chrome
- Bumper, rear chrome
- Cargo tie downs (12), fixed, rated at 500 lbs per corner (Deleted with (ZW9) pickup Bed delete.)
- CornerStep, rear bumper
- Door handles, body-color (Will be painted high gloss Black with (WPK) Trail Boss Package.)
- Glass, deep-tinted
- IntelliBeam, automatic high beam on/off
- Lamps, cargo area Cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
- Mirror caps, Black
- Moldings, beltline, Black
- Single Rear Wheels
- Tailgate and Bed rail protection cap, top
- Tailgate, gate function manual with EZ Lift includes power lock and release (Deleted when (ZW9) pickup Bed delete is ordered. Not available with (PCM) Convenience Package II unless (QK2) Multi-Flex tailgate is ordered.)
- Tailgate, standard (Deleted with (ZW9) pickup Bed delete.)
- Taillamps, with incandescent tail, stop and reverse lights (Note: Trucks equipped with dual rear wheels will feature LED signature tail and stop lamps, with incandescent reverse lamp.)
- Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup Bed delete.)
- Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner’s Manual for more information.)
- Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
- Following Distance Indicator
- Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup Bed delete.)
- Indicator-Seat Belt WARNING, Rear Seat (Requires Crew Cab or Double Cab model.)
- Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
- Seat Belt Adjustable Guide Loops front Row only (Included and only available on Crew Cab and Double Cab models.)
- StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
- Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your New driver
- Vehicle Name: Chevrolet Silverado 3500HD
- Body Style: Crew Cab Chassis Cab, Crew Cab Pickup
- Body Code: E63, ZW9
- Drivetrain: Four Wheel Drive
- Passenger Capacity: 5, 6
- Gross Axle Wt Rating – Front: 5600, 6000
- Gross Axle Wt Rating – Rear: 10400, 7250
- Curb Weight – Front: 4142
- Curb Weight – Rear: 2918
- Gross Vehicle Weight Rating Cap: 11700, 12250, 14000
- Fuel Economy Est-Combined:
- EPA Fuel Economy Est – City:
- EPA Fuel Economy Est – Hwy:
- Gross Combined Wt Rating: 30000, 40000
- Dead Weight Hitch – Max Trailer Wt.: 5000
- Dead Weight Hitch – Max Tongue Wt.: 500
- Wt Distributing Hitch – Max Trailer Wt.: 20000
- Wt Distributing Hitch – Max Tongue Wt.: 2000
- Fifth Wheel Hitch – Max Trailer Wt.: 17800, 21490, 31000
- Fifth Wheel Hitch – Max Tongue Wt.: 4450, 5372, 7750
- Maximum Trailering Capacity: 20000
- Engine Order Code: L5P
- Engine Type: Turbocharged Diesel V8
- Displacement: 6.6L/- TBD –
- Fuel System: Common-rail Direct Injection
- SAE Net Horsepower @ RPM: 470 @ 2800
- SAE Net Torque @ RPM: 975 @ 1600
- Trans Order Code: MGM, MGU, MKM
- Trans Type: 10
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.54
- Second Gear Ratio (:1): 2.87
- Third Gear Ratio (:1): 2.06
- Fourth Gear Ratio (:1): 1.72
- Fifth Gear Ratio (:1): 1.48
- Sixth Gear Ratio (:1): 1.26
- Reverse Ratio (:1): 4.54
- Clutch Size:
- Trans Power Take Off: , Yes
- Trans PTO Access: , – TBD –
- Transfer Case Model: – TBD –
- Transfer Case Gear Ratio (:1), High: 1.00
- Transfer Case Gear Ratio (:1), Low: – TBD –
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 720, 730
- Cold Cranking Amps @ 0° F (2nd): , 700
- Tons/yr of CO2 Emissions @ 15K mi/year:
- Maximum Alternator Capacity (amps): 170, 220 & 170, 220
- Maximum Alternator Watts:
- Total Cooling System Capacity: – TBD –
- Engine Oil Cooler: Yes
- Frame Type: Hydroformed
- Suspension Type – Front: Short/Long Arm
- Suspension Type – Rear: Independent
- Spring Capacity – Front: – TBD –
- Spring Capacity – Rear: – TBD –
- Axle Type – Front: – TBD –
- Axle Type – Rear: – TBD –
- Axle Capacity – Front: – TBD –
- Axle Capacity – Rear: – TBD –
- Axle Ratio (:1) – Front: 3.42, 3.73
- Axle Ratio (:1) – Rear: 3.42, 3.73
- Shock Absorber Diameter – Front: 51
- Shock Absorber Diameter – Rear: 51
- Stabilizer Bar Diameter – Front: 1.38
- Stabilizer Bar Diameter – Rear:
- Front Tire Order Code: QF6, QF9, QFG, QHY, QZT
- Rear Tire Order Code: QF6, QF9, QFG, QHY, QZT
- Spare Tire Order Code: , ZAE, , ZYG, ZZT
- Front Tire Size: LT235/80R17, LT235/80R18, LT275/65R20, LT275/70R18
- Rear Tire Size: LT235/80R17, LT235/80R18, LT275/65R20, LT275/70R18
- Spare Tire Size: , LT235/80R17, LT235/80R18, LT275/70R18,
- Front Tire Capacity: – TBD –
- Rear Tire Capacity: – TBD –
- Spare Tire Capacity: – TBD -, ,
- Revolutions/Mile @ 45 mph – Front:
- Revolutions/Mile @ 45 mph – Rear:
- Revolutions/Mile @ 45 mph – Spare:
- Front Wheel Size: 17 x – TBD -, 18 x – TBD -, 20 x – TBD –
- Rear Wheel Size: 17 x – TBD -, 18 x – TBD -, 20 x – TBD –
- Spare Wheel Size: 17 x – TBD -, 18 x – TBD -, ,
- Front Wheel Material: Aluminum, Steel
- Rear Wheel Material: Aluminum, Steel
- Spare Wheel Material: – TBD -, ,
- Steering Type: Pwr Recirculating Ball
- Steering Ratio (:1), On Center: – TBD –
- Steering Ratio (:1), At Lock: – TBD –
- Turning Diameter – Curb to Curb: 57.0
- Turning Diameter – Wall to Wall: N/A
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line):
- Disc – Front (Yes or ): Yes
- Disc – Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 14 x 1.6
- Rear Brake Rotor Diam x Thickness: 14 x 1.6, 14.1 x 1.3
- Drum – Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 36
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: – TBD –
- Aux Fuel Tank Location:
- Front Head Room: 43.03
- Front Leg Room: 44.54
- Front Shoulder Room: 66.02
- Front Hip Room: 61.18
- Second Head Room: 40.12
- Second Leg Room: 43.4
- Second Shoulder Room: 65.3
- Second Hip Room: 60.24
- Wheelbase: 172
- Length, Overall: – TBD -, 266.06
- Width, Max w/o mirrors: 81.85, 96.75
- Height, Overall: 80.04, 80.67
- Overhang, Front: – TBD –
- Overhang, Rear w/o bumper: – TBD –
- Front Bumper to Back of Cab: – TBD –
- Cab to Axle: 55.24
- Cab to End of Frame: – TBD –
- Ground to Top of Load Floor: – TBD –
- Ground to Top of Frame: – TBD –
- Frame Width, Rear: – TBD –
- Ground Clearance, Front: 10.39, 11.14
- Ground Clearance, Rear: 10.39, 11.14
- Cargo Box Length @ Floor: 98.27,
- Cargo Box Width @ Top, Rear: – TBD -,
- Cargo Box Width @ Floor: 71.4,
- Cargo Box Width @ Wheelhousings: 50.55,
- Cargo Box (Area) Height: 21,
- Tailgate Width: – TBD -,
- Cargo Volume: 83.5,
- Ext’d Cab Cargo Volume: – TBD –
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Ninth Gear Ratio (:1): 0.69
- Tenth Gear Ratio (:1): 0.63
- Country of Origin: United States Chevrolet Trucks
- Model Group: Silverado
- Vehicle Segment: Large Pick-up
- Vehicle Type: Crew Cab
- Body Cab Style: Crew Cab
- Bed Style: regular, regular
- Engine Displacement Units: 6.6, 6.6, 6.6
- Engine Camshaft: OHV, OHV, OHV
- Engine Block Type: iron, iron, iron
- Engine Cylinder Count: 8, 8, 8
- Engine Valve Count: 2, 2, 4
